Lettuce Vacuum Cooling vs. Hydrocooling: Which Method is Superior?

Every harvest season, farmers face the same expensive dilemma: how to remove field heat before the produce rots. Choosing the wrong cooling method can destroy your profit margin and ruin your reputation with buyers.

For lettuce and leafy greens, Vacuum Cooling is superior to Hydrocooling. Vacuum cooling reduces temperature to 2°C in just 20 minutes without wetting the product, eliminating the risk of cross-contamination and bacterial rot. While Hydrocooling works well for dense fruits like melons, it is too slow and risky for porous vegetables.

At Allcold, I have consulted with hundreds of clients, from large-scale growers like Carlos in Mexico to demanding buyers like Norman in the USA. They all ask me the same question: "Mila, why should I invest in a vacuum cooler when a hydrocooler seems cheaper?" The answer isn’t just about price; it is about physics, biology, and the harsh reality of the supply chain. While water is a great conductor of heat, it is also a great carrier of disease. In this detailed comparison, I will break down why, for lettuce specifically, the vacuum chamber is the only logical choice for the modern exporter.

Speed and Throughput: Which Method Wins the Race?

Time is the enemy of freshness. When you have 50 tons of lettuce sitting in the sun, you need a method that can process pallets faster than your harvesters can cut them.

Compare measured cooling time and product quality for equivalent loads. Vacuum cooling is well suited to many lettuce applications, but hydrocooling performance depends on water contact, package and system design. Neither method has one universal cycle time.

The Physics of Speed

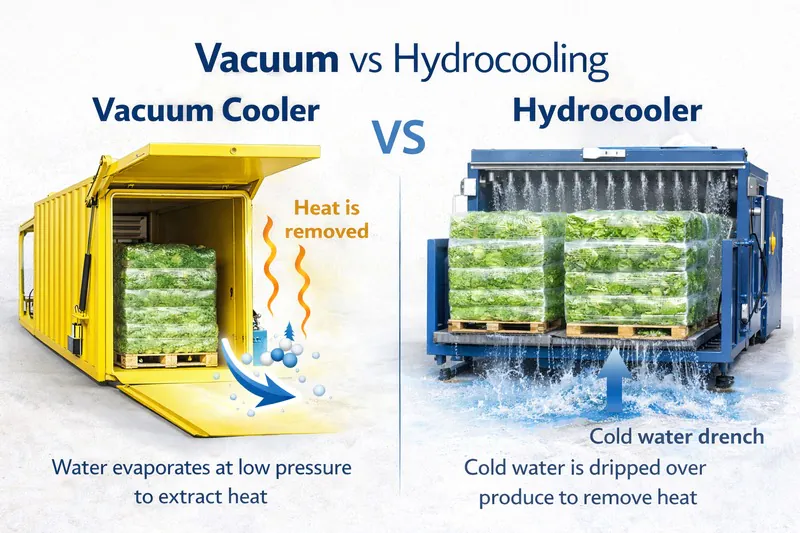

To understand why vacuum cooling wins the race for lettuce, we must look at the mechanism. Hydrocooling uses conduction. You pour cold water over the vegetable, and the heat travels from the leaf into the water. This works from the outside in. For a dense pallet of lettuce, the water struggles to penetrate the center of the boxes. You often end up with cold outer leaves and a warm, rotting core.

Vacuum cooling uses Latent Heat of Vaporization¹. We place the lettuce in a sealed chamber and drop the pressure. This forces the moisture inside the lettuce to boil at low temperatures. As the water turns to vapor, it absorbs heat energy instantly.
According to our operational data, a standard cycle takes roughly 20 to 30 minutes, not including loading and unloading time. This process happens simultaneously throughout the entire pallet. The center of the lettuce head cools at the exact same second as the outside leaf.

The "Bottleneck" Effect

Calculate throughput from the complete cycle and handling sequence of the proposed equipment. A dual-chamber arrangement, staggered start or integrated skid is configuration-specific; none establishes a universal batch interval.

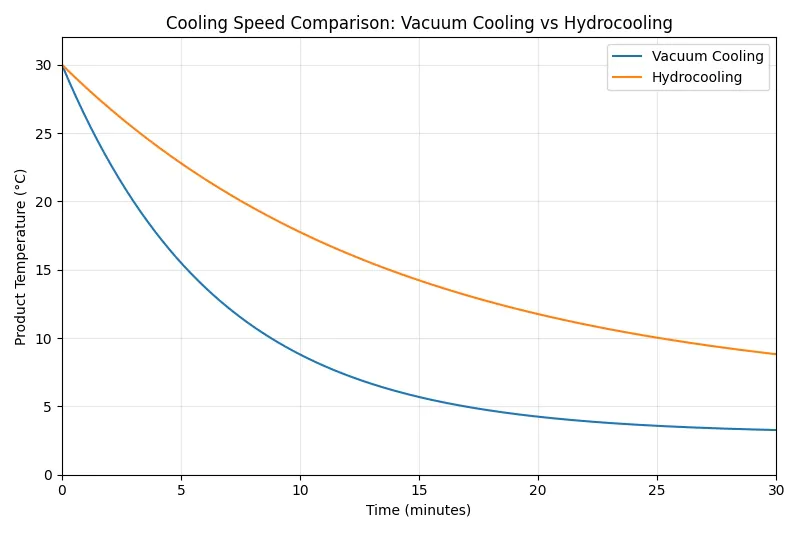

Table: Throughput Comparison

Food Safety and Hygiene: The Risk of "The Community Bath"

In the post-COVID world, hygiene is the number one priority for buyers like Sophia in Singapore. How do you ensure your cooling process isn’t spreading pathogens?

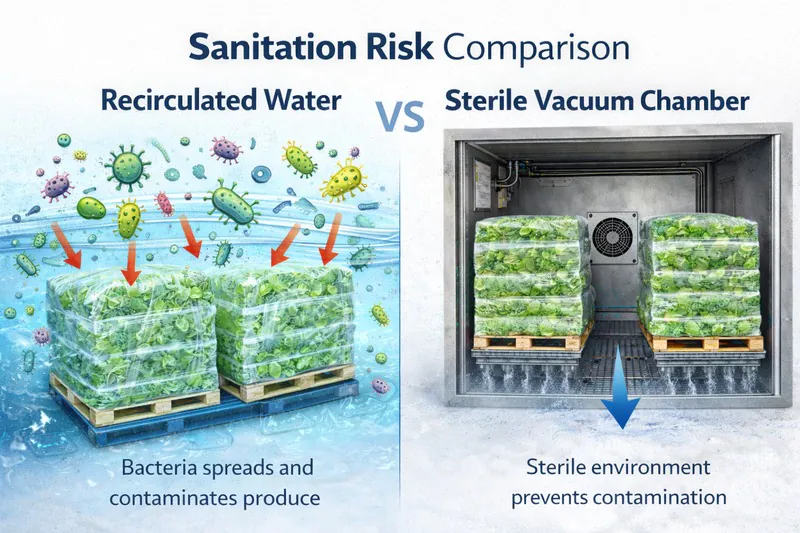

Vacuum cooling is a clean, dry process. It takes place in a sealed stainless steel or painted steel chamber, isolating the product. Hydrocooling recycles water, effectively creating a "community bath" where one contaminated head of lettuce can spread bacteria like E. coli or Salmonella to the entire batch.

The Cross-Contamination Nightmare

Imagine you are washing 10,000 heads of lettuce in a hydrocooler. The water is chilled and recirculated. If just one head of lettuce has bird droppings or pesticide residue, that contaminant washes off into the water. Now, every single head of lettuce that follows is bathed in that contaminated water.
To combat this, hydrocooler operators must use massive amounts of chlorine or ozone. This is expensive, requires strict monitoring, and leaves chemical residues that health-conscious consumers dislike.

The Vacuum Advantage

Vacuum cooling³ eliminates this risk entirely.

1. Isolation: The lettuce stays on the pallet. It never touches a machine part, and it never touches "foreign" water.
2. Filtration: The air entering the chamber to release the vacuum is filtered.
3. HACCP Compliance⁴: For clients supplying fast-food chains or ready-to-eat salad processors, vacuum cooling is often mandatory. Our AVCF models, specifically designed for prepared foods, even use full stainless steel interiors to meet the strictest hygiene standards.

Use the installed machine’s approved cleaning procedure and the facility’s hygiene plan. Cleaning frequency depends on product and use; it should not be reduced to a general two-season interval or assume every component may be hosed down.

Product Quality: Wet vs. Dry Storage?

Once the lettuce is cold, how long will it last? The presence of surface moisture is the deciding factor in shelf life.

Lettuce cooled by vacuum is dry, which inhibits mold growth and bacterial slime during transport. Hydrocooled lettuce is wet; if not dried perfectly (which is difficult), the trapped moisture accelerates rot, turning the leaves pink and slimy within days.

The Moisture Dilemma

Water is life for a growing plant, but it is death for a harvested one.
In a hydrocooler, the lettuce is drenched. Even with expensive "centrifuge" drying steps or air blowers, moisture remains trapped between the leaves. When this wet lettuce is packed into a cardboard box and loaded into a refrigerated container, that moisture sits there for weeks. This environment is perfect for Botrytis⁵ (gray mold) and bacterial soft rot.

The "Skin-Tight" Freshness

Evaluate moisture change and packaged quality in the actual supply chain. Evaporation does not guarantee a beneficial amount of wilting, freedom from microbial growth or a 21–30 day export shelf life.

The "Vacuum Delay" Technology

Confirm any hold, ramp or delay functions in the proposed controls and assess their settings with the real product. Do not assume an adaptive moisture-response function is standard on all vegetable machines or that it eliminates dehydration.

Suitability: Why Not Use Vacuum for Everything?

If vacuum cooling is so perfect, why do people still buy hydrocoolers? The answer lies in the biology of the specific crop you are growing.

Vacuum cooling relies on a high surface-area-to-weight ratio. It is perfect for leafy greens, mushrooms, and flowers. Hydrocooling is superior for dense items with thick skins, like apples, melons, or carrots, where the vacuum cannot easily extract moisture.

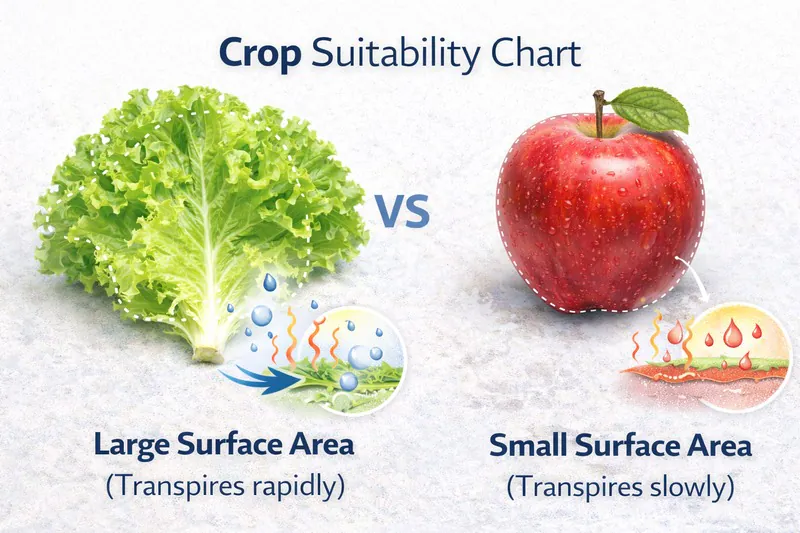

The Surface Area Rule⁷

Vacuum cooling works by boiling water from the surface of the plant tissue.

• Lettuce: Think of a head of lettuce as hundreds of sheets of paper. The surface area is massive. Water can easily escape from anywhere. This is why it cools in 20 minutes.
• Carrots/Melons: These have a low surface area and a thick, waxy skin. The water is trapped deep inside. If you put a melon in a vacuum cooler, the pressure drops, but the water cannot evaporate fast enough. The machine will run for hours, wasting electricity, and the fruit might even burst.

The Strategic Choice

Method selection depends on the commodity, package, loading and hygiene requirements. Vacuum cooling is a strong candidate for suitable leafy greens; other methods can also be appropriate. Compare product results and the full installed operation before choosing.

Operational Complexity: Plug & Play vs. Civil Works

Installing an industrial cooler can be a construction nightmare. Which system is easier to set up and manage on your farm?

Allcold’s fresh-produce vacuum cooling proposals can be matched to the actual pallet and loading route. Use that flexibility in a fair method comparison: include installation space, utility connections, handling and product quality for both vacuum cooling and hydrocooling. Share the crop and pack details first so the preferred method follows the application.

Confirm site connections, drainage, loading space and service access for either method. A vacuum-cooling configuration should not be assumed to need only power, and a hydrocooling installation should not be assigned a generic construction cost without a layout.

The Installation Advantage

In the agricultural world, flexibility is money. Farms often lease land or move packing sheds closer to the harvest.

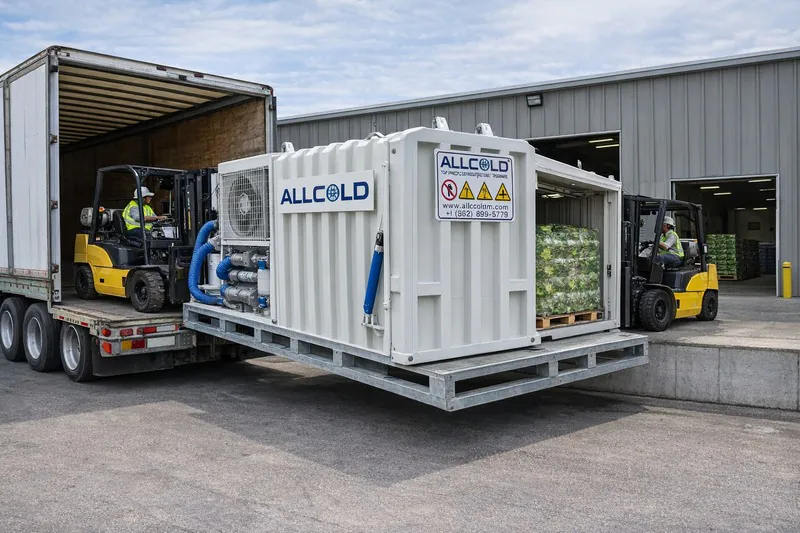

Our vacuum coolers (like the AVC-150 or AVC-3000) are self-contained. The vacuum pumps, refrigeration compressor (Bitzer/Emerson), and condenser are mounted on a single steel frame.

• No Water Infrastructure: You do not need a massive supply of clean water constantly running.
• No Drainage Issues: You do not need to treat and dispose of thousands of liters of chemically treated wastewater.
• Portability: If you move your packing house next season, you pick up the vacuum cooler with a forklift and put it on a truck. You cannot do that with a concrete hydrocooling pit.

Maintenance Simplicity

Maintaining a vacuum cooler is mechanical. You check the oil in the vacuum pump (daily warm-up is critical!), clean the condenser coils, and check the door seals.
Maintaining a hydrocooler is chemical and biological. You must constantly test pH levels, chlorine levels, and bacterial counts. You have to clean filters clogged with mud and leaves. For a farm manager, the vacuum cooler is a "set it and forget it" machine, whereas the hydrocooler requires a dedicated technician to manage the water chemistry.

Table: Operational Requirements

Conclusion

For lettuce, compare the actual cooling result, handling requirements, hygiene procedure and whole-system cost. A vacuum-cooling proposal should state its duty and configuration clearly; neither zero contamination nor a universal shelf-life advantage should be promised.
